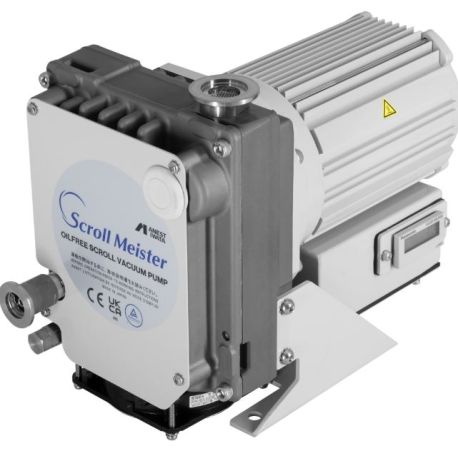

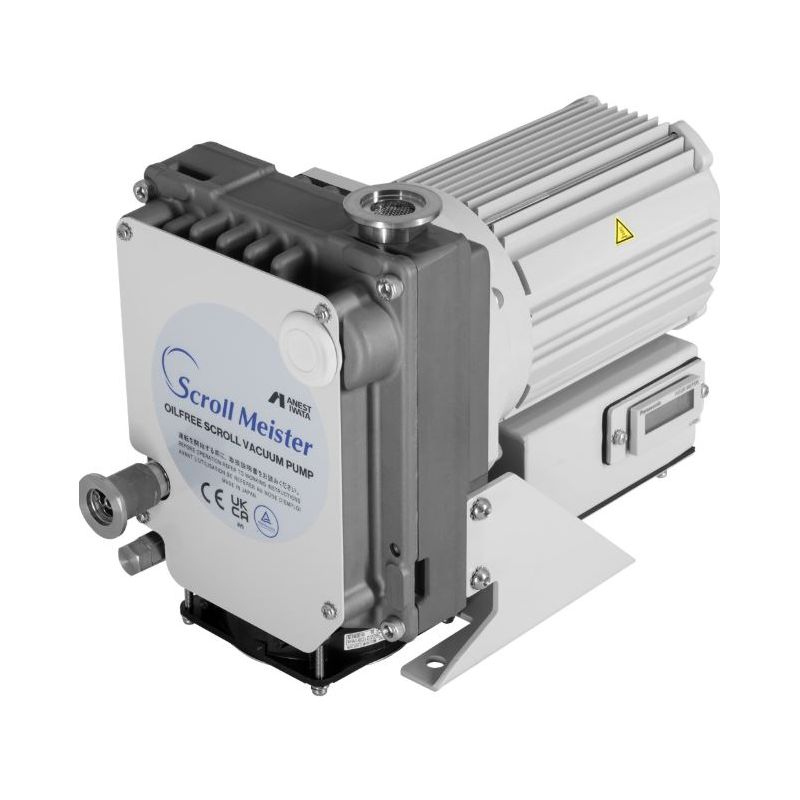

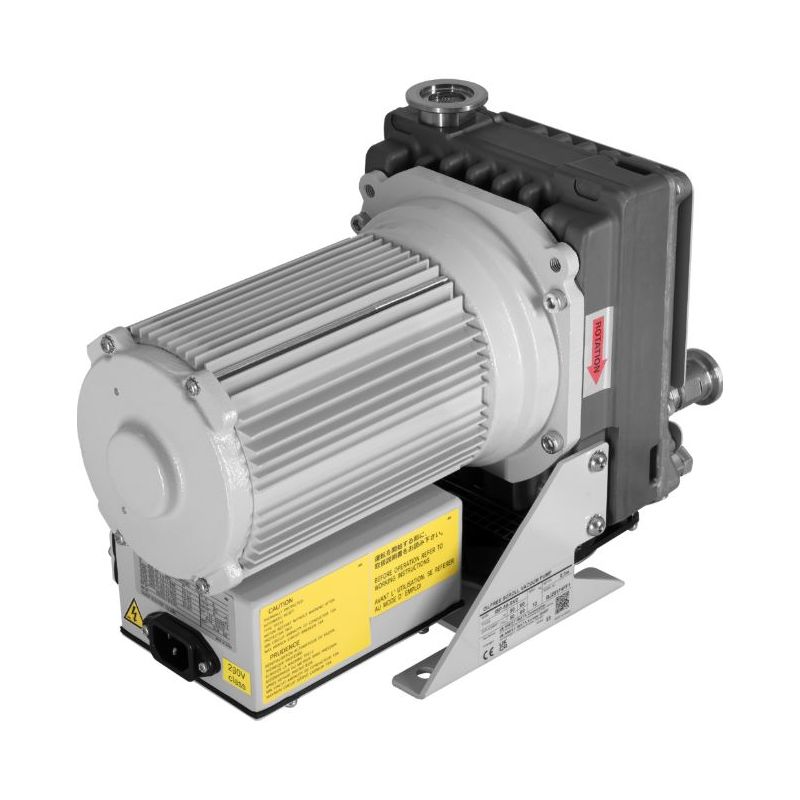

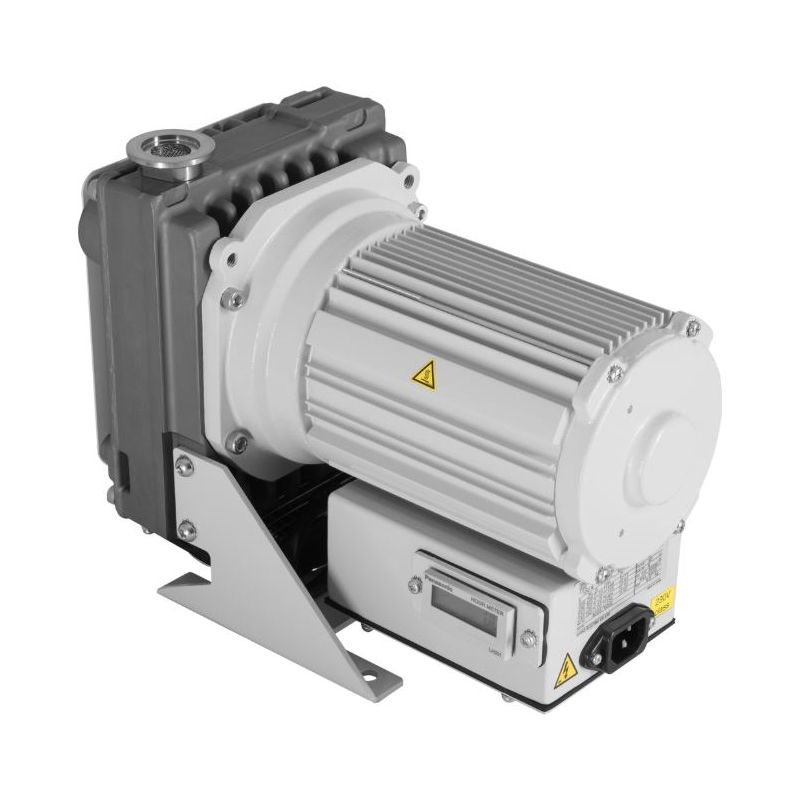

SCROLL VACUUM PUMP ANEST IWATA ISP-50SV2
Quantity:

New product

Data sheet

OPM IWATA
P/N OPM ISP-50SV2
FITTING IN ISO KF 25
FITTING OUT ISO KF 16
RANGE 50L/min @50Hhz
MISCELLANEOUS 2 x10-1 mBar Final pressure
SUPPLY VOLTAGE 230VAC 1 Phase
POWER IN 0.1KW
STATUS NEW manufacturer's warranty

More info

The Anest Iwata ISP-50-SV2  is a dry scroll vacuum pump designed to deliver a clean oil-free vacuum, making it a great alternative to rotary vane pumps. It's a single-phase unit that operates on 230 VAC, 50/60 Hz, with a displacement of 50L/min at 50 Hz.

Thanks to its dual-wrap scroll technology and air-cooled system, the ISP-50 is known for its high performance, compact size, and low power consumption. It operates with minimal noise and vibration and is built to be a durable and reliable choice for various applications.

Key Features & Benefits:

  • Oil-Free: The pump works without oil, ensuring a clean and dry vacuum environment and eliminating the need for oil changes, filters, or foreline traps.

  • Low Maintenance: With no oil to manage and an air-cooled system, installation is flexible and routine maintenance is minimal.

  • Efficient and Quiet: Its design provides high performance, while also being energy-efficient, quiet, and low in vibration.

  • Lightweight and Compact: The pump is light and compact, which minimizes the required installation space.

  • Durable: It endures repeated continuous operation between atmospheric pressure and vacuum.

Applications:

The ISP-50 is ideal for a wide range of applications where a clean vacuum is essential, including:

  • Sputtering, vacuum deposition, and ion plating equipment

  • Accelerators and synchrotron radiation

  • Surface modification and electron beam processes

  • Gas recovery devices

  • Leak detectors

  • Device handling systems

  • Vacuum furnaces and heat treatment furnaces

  • Laboratory use

  • Vacuum packaging machines
