New product
OPM | IWATA |
P/N OPM | ISP-90 |
FITTING IN | ISO KF 25 |
FITTING OUT | ISO KF 16 |
RANGE | 90L/min @50Hhz |
MISCELLANEOUS | 5 x10-2 mBar Final pressure |
SUPPLY VOLTAGE | 230VAC 1 Phase |
POWER IN | 0.15KW |
STATUS | NEW manufacturer's warranty |

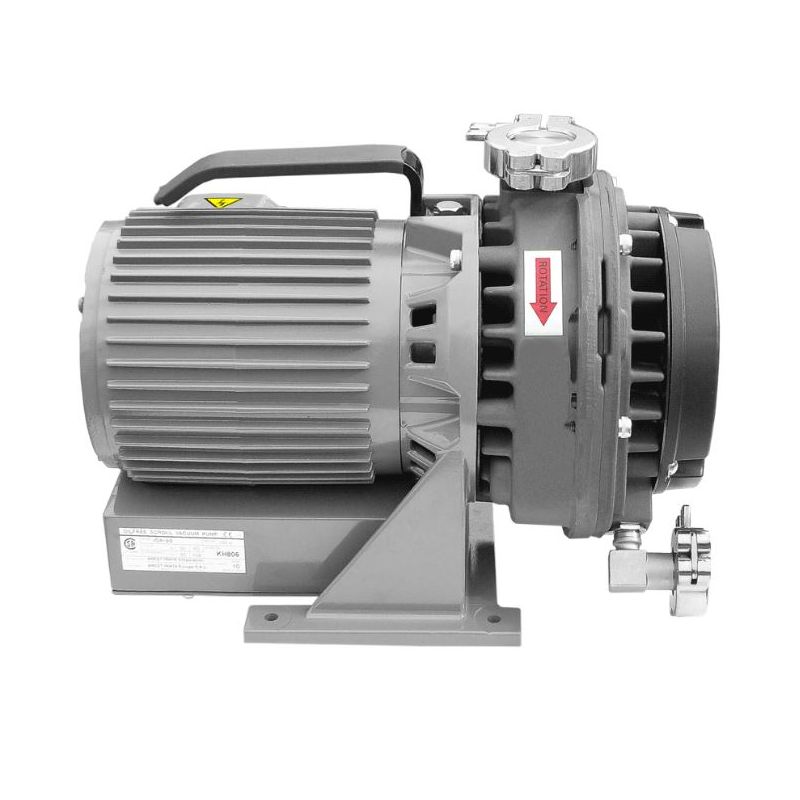

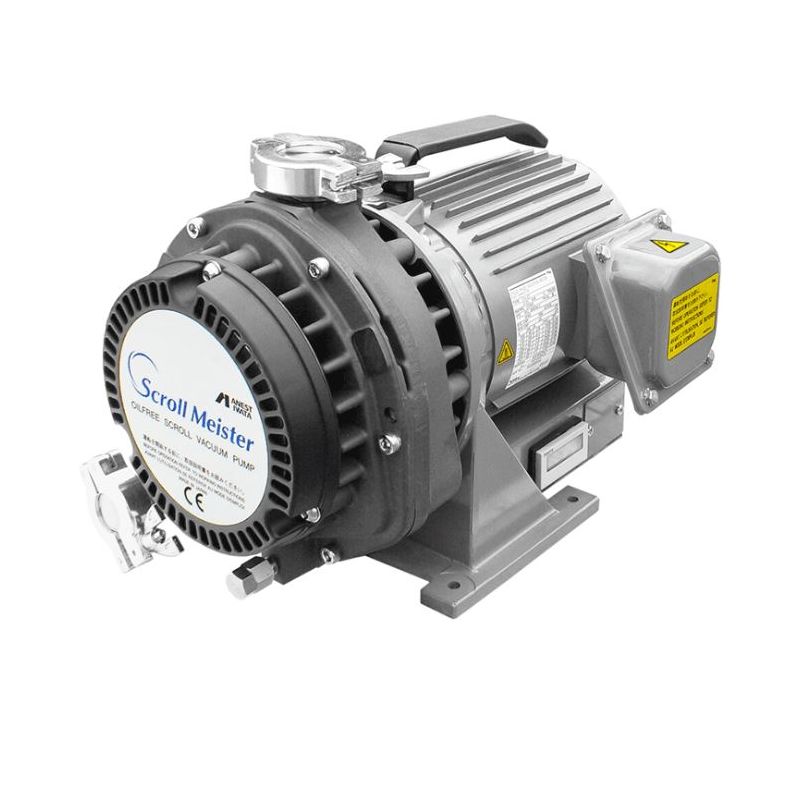

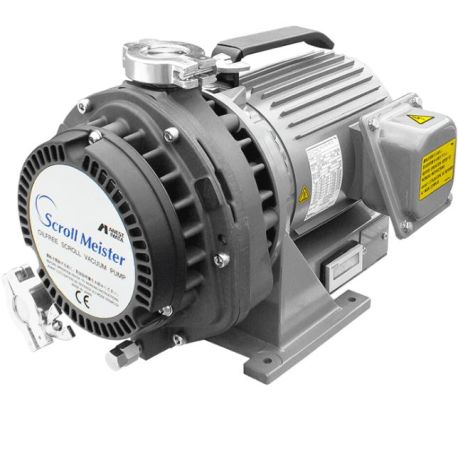

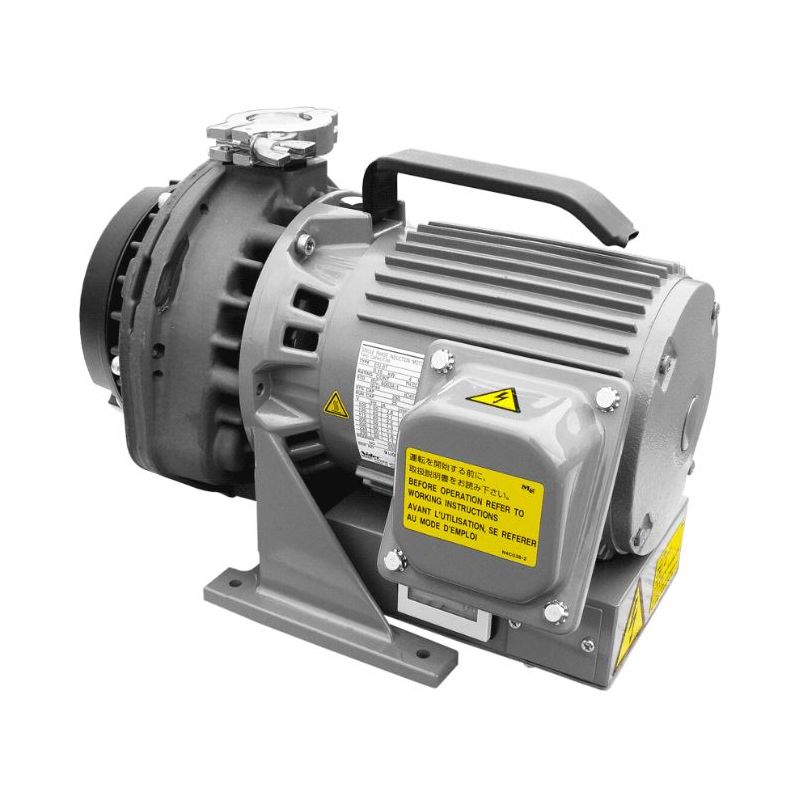

The Anest Iwata ISP-90 is a dry scroll vacuum pump designed to deliver a clean oil-free vacuum, making it a great alternative to rotary vane pumps. It's a single-phase unit that operates on 230 VAC, 50/60 Hz, with a displacement of 90L/min at 50 Hz.
Oil-Free: The pump works without oil, ensuring a clean and dry vacuum environment and eliminating the need for oil changes, filters, or foreline traps.
Low Maintenance: With no oil to manage and an air-cooled system, installation is flexible and routine maintenance is minimal.
Efficient and Quiet: Its design provides high performance, while also being energy-efficient, quiet, and low in vibration.
Lightweight and Compact: The pump is light and compact, which minimizes the required installation space.
Durable: It endures repeated continuous operation between atmospheric pressure and vacuum.
The ISP-90 is ideal for a wide range of applications where a clean vacuum is essential, including:
Sputtering, vacuum deposition, and ion plating equipment
Accelerators and synchrotron radiation
Surface modification and electron beam processes
Gas recovery devices
Leak detectors
Device handling systems
Vacuum furnaces and heat treatment furnaces
Laboratory use
Vacuum packaging machines
