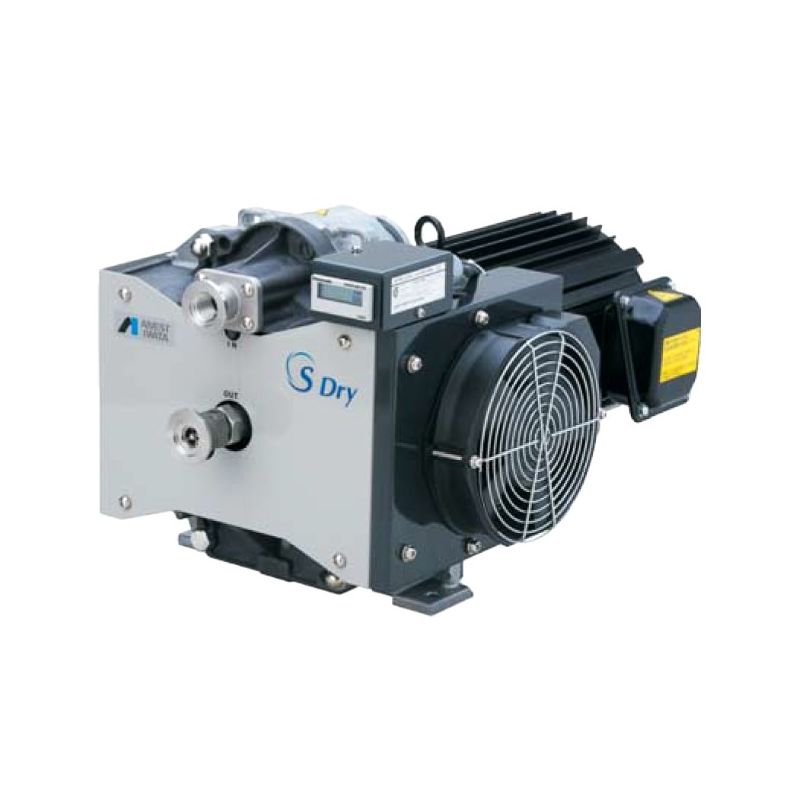

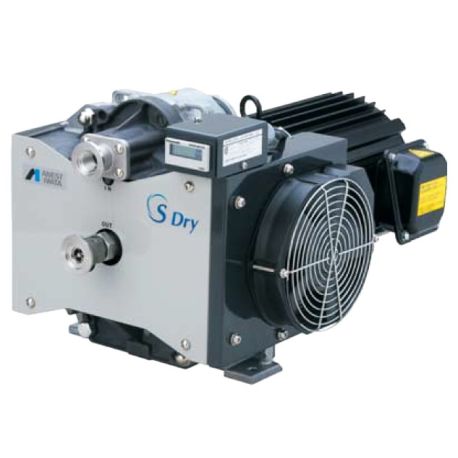

SCROLL VACUUM PUMP ANEST IWATA DVSL-501E
Quantity:

New product

Data sheet

OPM IWATA
P/N OPM DVSL-501E
FITTING IN ISO KF 25
FITTING OUT ISO KF 25
RANGE 430L/min @50Hhz
MISCELLANEOUS 1 mBar Final pressure
SUPPLY VOLTAGE 380VAC 3 Phases
POWER IN 0.9KW
STATUS NEW manufacturer's warranty

More info

The Anest Iwata DVSL-501E is a high-performance oil-free dry scroll pump that is compact, very light, and economical to operate.

Designed for increased pumping efficiency for high vapor and particle pumping load applications. Back-up material : Fuorine rubber

Thanks to its oil-free design, it requires little routine maintenance, completely eliminating the need for oil changes, filters, or foreline traps. It's an excellent, clean alternative to oil-sealed rotary vane pumps.

Typical Applications:

  • Vacuum Chuck
  • Vacuum Transport
  • Vacuum Forming
  • Deaerator
  • Gas Substitution
  • Vacuum Drying
  • Vacuum Packing
  • Cryopump Regeneration
  • pre-vacuum for turbomolecular pump
  • degasser
  • exchange of gases
